Q-LFH Liquid Fuel Heater

This product has been discontinued and removed from our shelves.

This liquid fuel heater uses light diesel oil or kerosene as fuel and through the heat, the exchanger sends wind to the compartment by blower, equipment square storehouse etc., for the purpose of heating, frost-removing, etc.

Features
1. It uses a centrifugal pulverization form to keep sufficient burning and high heat efficiency.
2. With compact structure, maintenance, repair of take-down and installation is convenient
3. Temperature rising is quick and the passengers can feel it.
4. With overheat security protection measures, the liquid fuel heater can work safely and stably.
5. The output wind is big and, equipped with heat conversion switch, can get two different heat capacity in High/Low level.

Application
The liquid fuel heater is used in occasions of requirements of high heating and quick temperature rising. They can meet all the requirements: from all sorts of drive chambers, equipment storehouses, square storehouses, which have compact installation and small heat capacity, to various large-scale equipment with bigger heat capacity. It can also be used in frost-removing, heating of passenger cars, commercial vehicles, microbuses, trucks, and engineering vehicles under bad and cold weather conditions.

Technical specifications

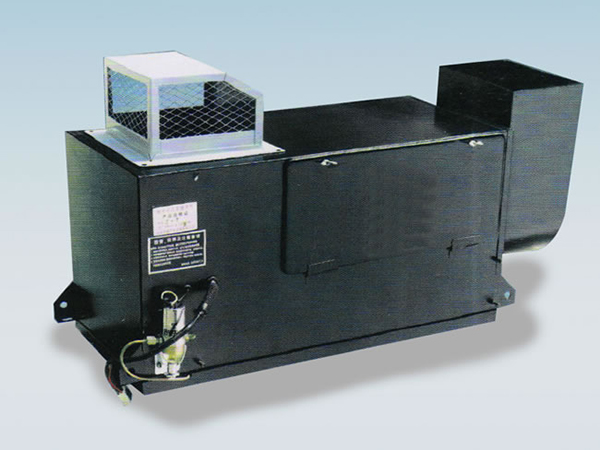

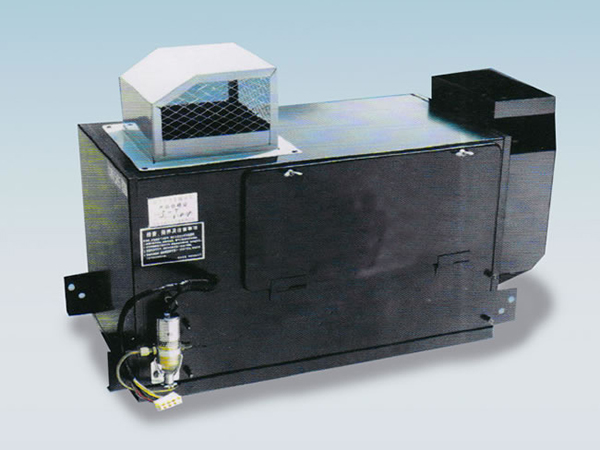

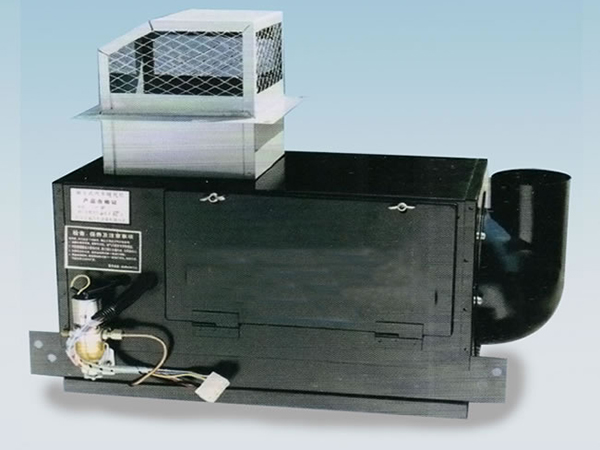

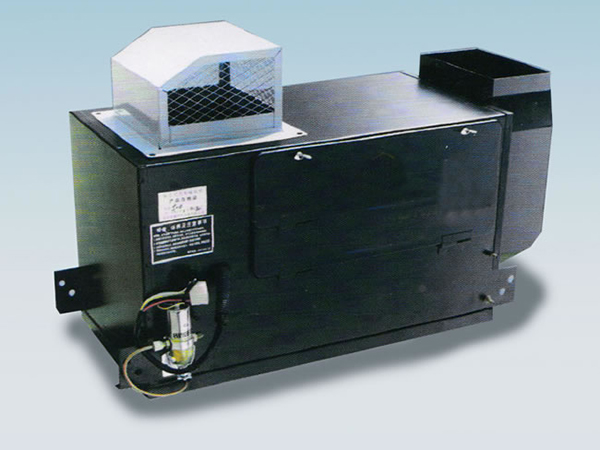

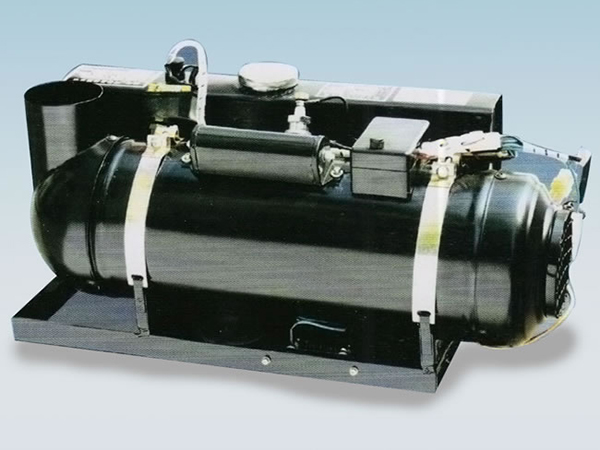

Picture Q-LFH Liquid Fuel Heater Q-LFH Liquid Fuel Heater Q-LFH Liquid Fuel Heater Q-LFH Liquid Fuel Heater
Model Q-FH150 Q-FH260 Q-FH360 Q-FH450
Hot Flux (High/Low level) 4.6 KW 7.0/5.8 KW 9.3 KW 12.4/9.2 KW
Oil Consuming (High/Low level) 0.6/0.4 Kg/h 0.6/0.4 Kg/h 1.1 Kg/h 1.22/0.91 Kg/h
Working Voltage 12/24 V 12/24 V 12/24 V 12/24 V
Power consuming (High/Low level) 86 /60 W 86 /60 W 90 W 120/90 W
Output Air Flow (High/Low level) 200/120 (m3/h) 530/390 (m3/h) 750 (m3/h) 750/550 (m3/h)
Weight 14 Kg 25 Kg 30kg 35 Kg
Dimension 550*250*250 mm 695*350*315 mm 693*300*326 mm 734*326*375 mm
Applied vehicle Defrosting for big buses , less than 10 seats coaches, vans less than 20 seats coaches, 6-7m buses 20-25 seats vehicles, 7.5-8m buses 20-25 seats vehicles, 7-8m buses

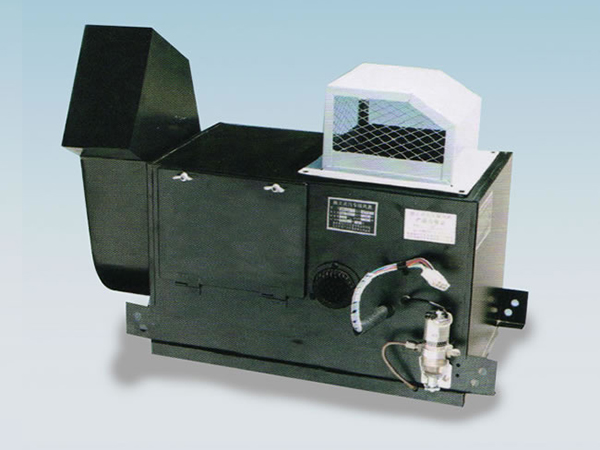

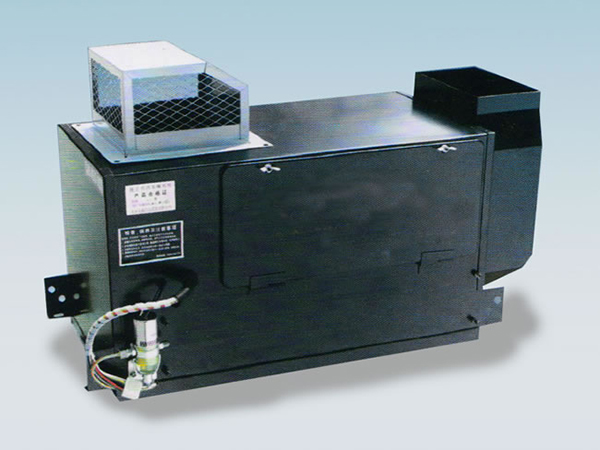

Picture Q-LFH Liquid Fuel Heater Q-LFH Liquid Fuel Heater Q-LFH Liquid Fuel Heater
Model Q-FH530 Q-FH565 Q-FH700
Hot Flux (High/Low level) 14.7/11 KW 16.3/12.2 KW 19.8/14.7KW
*Oil Consuming (High/Low level) 1.48/1.11 Kg/h 1.64/1.24 Kg/h 2.16/1.66 Kg/h
Working Voltage 12/24 V 12/24 V 12/24 V
Power consuming (High/Low level) 120/90 W 146/110 W 216/120 W
Output Air Flow (High/Low level) 750/550 (m3/h) 800/600 (m3/h) 970/710 (m3/h)
Weight 35 Kg 36 Kg 40 Kg
Dimension 734*326*375 mm 734*326*375 mm 805*326*376 mm
Applied vehicle 25-35 seats vehicles, 8-9m buses 35-45 seats vehicles, 9-10m buses More than 45 seats vehicles, 11-12m buses
Note:
*Oil: light diesel oil 1L=0.86kg
Dimension (mm): Including the square chest and oil tank
Q-FH150 liquid fuel heater is used for warming and defrosting of 8-12m3 special vehicles, equipment cabins, heat preservation cabins, truck cabins, vans, etc.
Q-FH260-700 liquid fuel heater is used for warming and defrosting of more than 12 m3 equipment cabins, heat preservation cabins, big and middle sized passenger vehicles, and project vehicles.
