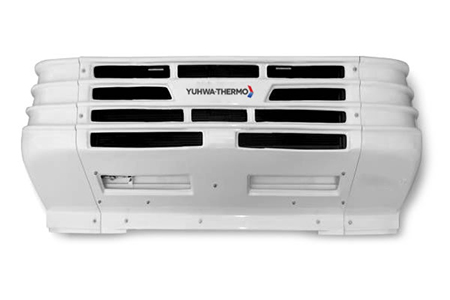

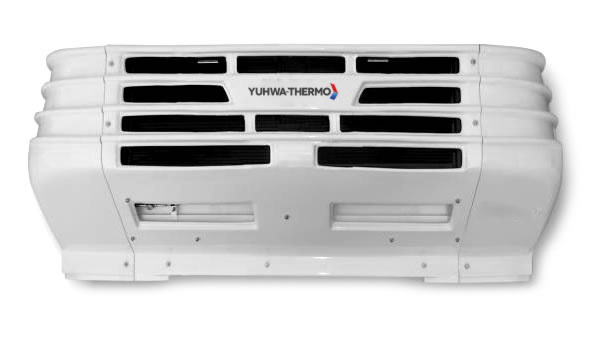

Monoblock Type Truck Refrigeration Unit

Application
For Frozen 4.5㎥ ~ Fresh 8㎥ Truck

Container Size	Frozen	-25 ℃	27.0 ㎥
		-20 ℃	30.0 ㎥
		-15 ℃	32.0 ㎥
		-10 ℃	33.0 ㎥
	Fresh/chilled	-5 ℃ ~ 15 ℃	up to 37 ㎥
Truck Size			6-8 tons

Cooling capacity

Temperature		kW	Kcal/h	Btu/h
Cooling Capacity	0 ℃	6.41	5500	22000
	-18 ℃	3.61	3500	14000

ISO standard, 35℃ ambient temperature, compressor speed: 1800rpm

Other Specification

Dimensions (L x W x H, mm)		1952 x 706 x 538
Evaporator Air Flow (m3/h)		2500
Weight (kgs)		140
Installation Hole Size (mm)		1570 x 482
Comp.	Model	TM21
	Displacement	215cc
R404a (kgs)		2.3

System components:
Condenser unit
Super slim evaporator unit
Engine driven compressor
Installation kit
In-cab digital control system
Standby unit (optional)

Refrigerant:
HFC R404a chlorine zero

Compressor:
Singapore or Japan original compressor
Defrost type:
Auto/manual hot gas defrosting

Voltage:
DC12V / DC24V
