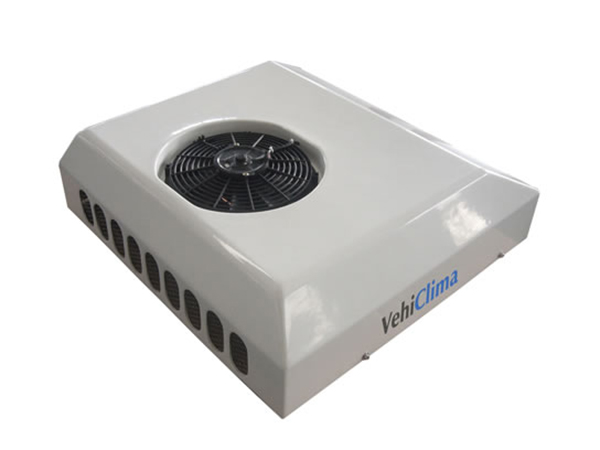

DC Electric Powered Truck Air Conditioner

DC Electric Powered Truck Air Conditioner

This product has been discontinued and removed from our shelves.

Features
1. The DC electric powered truck air conditioner finds applications in a wide range of places because of its non-installation for the engine-drive compressor.
2. The one-body integrated type offers easy DIY installation, making it possible to save labor costs.
3. It uses a hermetic integrated electric brushless motor (BLDC) compressor which features low noise and less vibration. This provides the driver a good driving environment.
4. Direct current drive, there is no need for converter.
5. For users' convenience, this DC powered truck air conditioner comes with three working modes that are automatic, manual and nighttime working modes. Meanwhile, the system offers abundant cooling capacity and is an ideal solution to offer comfort to truck drivers.
6. It offers over or under voltage and compressor over heat auto-switch-off protection to avoid draining the battery bank to make sure the driver can start the engine at anytime.
7 .The electric powered truck air conditions can be used in commercial vehicles, heavy duty vehicles, truck cabs, etc.

Technical Specifications

Model YXDT03B-1 YXDT03b -2
Cooling capacity 2500Kcal/h (3.0KW, 9920Btu)
Voltage DC12V DC24V
Standard Total Current ≤70A ≤35A
Evaporator Airflow 800m3/h
Condenser Airflow 1700m3/h
Compressor Type Totally-enclosed, DC powered and direct connecting
Displacement 21cc/r 36cc/r
Dimension 804×771×236mm
Weight 47.5Kg
Pressure Protection High Pressure 2.65MPa
Low Pressure 0.05MPa
Refrigerant/Charge Amount R134a/0.9-1.1kg
Applying Vehicles Commercial Vehicle, Heavy duty Vehicle

Note: Standard cartons in shipping package.
           For all VehiClima Industry products we offer a one year warranty.

As a China-based DC electric powered truck air conditioner manufacturer, VehiClima Industry also offers container truck refrigeration unit, van refrigeration unit, battle tank air conditioner, vertical air conditioner, ambulance car air conditioner, articulated bus air conditioner, and more.
