Midi Bus Air Conditioner
Feedback Form

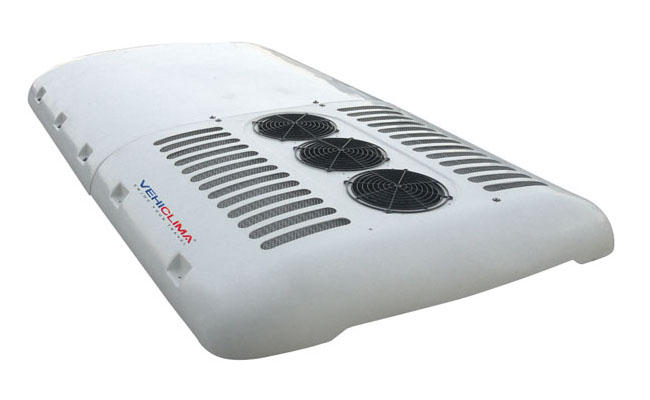

Midi Bus Air Conditioner

Features
1. The roof-mount layout makes the midi bus air conditioner convenient to open and overhaul.
2. The fashionable streamline design perfectly integrates with the bus body.
3. With its high quality fiberglass epoxy resin case and cover, the midi bus air conditioner has high strength and high resistance to vibration and corrosion.
4. It has abundant cooling capacity, low noise and lower power consumption.
5. World-brands key parts assure the system's reliability and stability.
6. The water-proof electric fittings efficiently increase the system's reliability and lifespan of the electric parts.
7. Universal parts' application leads maintaining interchangeability, lowering after-sales service costs.
8. The medium bus air conditioner can be used on 6.5-7.5 bus.

Technical specifications

Model VB14
Standard Cooling Capacity 14000 Kcal/h(16.3KW,55550 Btu/h)
Max Cooling Capacity 15000Kcal/h(17400W, 59600 Btu/h)
Refrigerant HFCR134a
Compressor Brand UX330/TM31
displacement 330cc/313cc
Evaporator Type Cooper Tube & Aluminum fins
Blower Type Double Axle Centrifugal Flow
Blower Quantity 4
Blower Output 4000 m3/h
Dimension 1645×1600×259 mm
Condenser Type Cooper Tube & Aluminum fins
Fan Type Axial Flow
Fan Quantity 3
Fan Output 6000 m3/h
Dimension 1351×1600×259mm
Control System Bus Interior Temperature 16℃-27℃ Adjustable
Defrosting Protection 2℃
High Pressure Protection 2.5Mpa
Low Pressure Protection 0.05Mpa
Fresh Air Exchange Rate 25%
External Dimension 2996×1600×259mm
Total current ≤62A(24V)

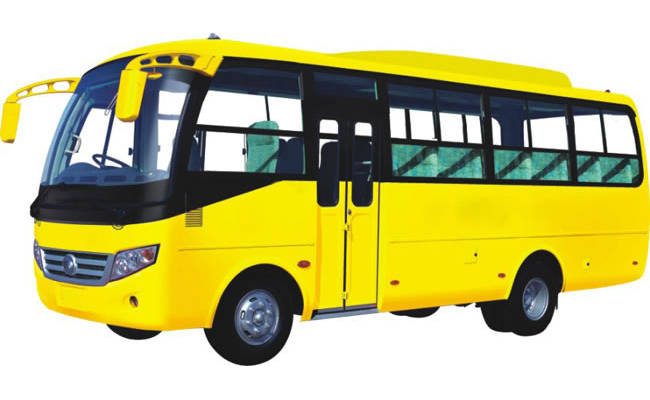

Applying Buses 7m 27 seated Bus

Note: One year (12 months) warranty period since the date the products have been installed.

As a Chinese manufacturer of midi bus air conditioner, VehiClima Industry also provides auxiliary power unit truck air conditioner, articulated bus air conditioner, city bus air conditioner, van refrigeration unit, independent bus air conditioner, DC electric truck air conditioner, etc.
